ĐẶC ĐIỂM NỔI BẬT SẢN PHẨM

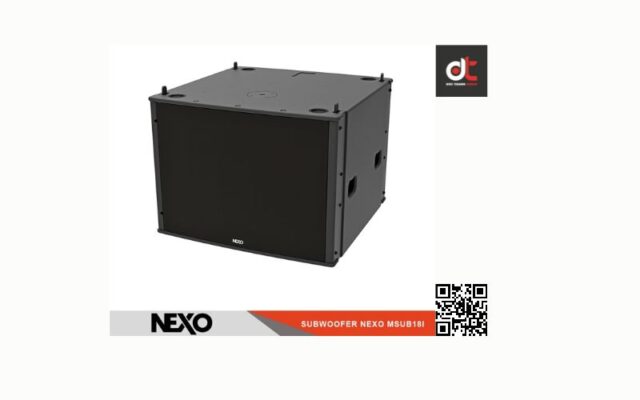

MSUB18
Measuring 701mm wide x 525mm high x 704mm deep and weighing 55 kg, the MSUB18-I is the same width as the GEO M12 main cabinet, and 141% higher. Cabinets are constructed from Baltic birch ply with large composite bumpers on the corners, and feature integral rigging. Employing a single 18″ diameter voice coil Neodymium driver in a high-efficiency band pass cabinet design with a quadratic shaped profiled port, the MSUB18 can be deployed in Omni or Cardioid modes and is available in black, white or custom RAL colours. The MSUB18-I is the installation version.
KEY FEATURES
Very high power, arrayable sub that can be stacked or flown, with or without its companion main element the GEO M12
Integrated rigging hardware with no loose parts
Front and rear connectivity for cardioid (front to back) implementation
Comprehensive range of versatile, multifunction accessories for deploying the MSUB18 in a wide variety of applications
Available in black, white and custom RAL colours
SPECIFICATIONS
| Frequency Response @-6 dB | 32 Hz to 120 Hz |
| Sensitivity 1W@1m | 107 dB SPL Nominal |
| Peak SPL@1m | 139 dB |
| Available Crossover Frequencies | 32-65, 32-75, 32-85, 32-95, 32-120 Hz |
| Nominal Impedance | 4 Ohms |
| Recommended Power | 2000 Watts |
FEATURES
| Component | 1 x 18” 4 Ohms very long excursion Neodymium driver |
| Height x Width x Depth | 525mm x 701mm x 704mm (20.6” x 27.6” x 27.7”) |
| Weight: Net | 55 kg / 122 lbs |
| Connectors | 4 x NL4, 4 poles connectors (1+/1- MSUB18 / 2+/2- Through) |
| Construction | Baltic Birch Plywood & textured black or white coating |
| Fittings | 8 x Side handles |
| Front Finish | Steel front grill + back mesh |
| Operating temperature range | 0°C – 40 °C |
| Storage temperature range | -20 °C – 60 °C |
System Operation
Recommended powering solution – NXAMP4x4 Powered TDcontroller: 2 x MSUB18 per channel
Optional powering solution – NXAMP4x1mk2 Powered TDcontroller (Bridged): 1 x MSUB18 per channel
Optional powering solution – NXAMP4x2mk2 Powered TDcontroller: 1 x MSUB18 per channel
