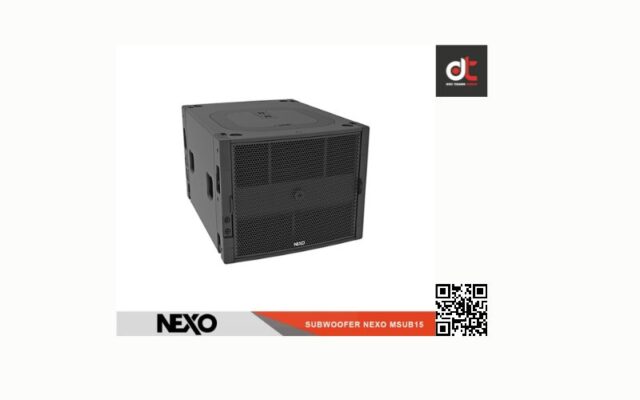

MSUB15
Measuring 437mm wide x 531mm high x 704mm deep and weighing 40Kg, the MSUB15 is the same width as the GEO M10 main cabinet, and 50% higher. Cabinets are constructed from Baltic birch ply with large composite bumpers on the corners, and feature integral rigging. Employing a single 15″ diameter / 3″ voice coil Neodymium driver in a high-efficiency band pass cabinet design with a quadratic shaped profiled port, the MSUB15 can be deployed in Omni or Cardioid modes and is available in black, white or custom RAL colours. The touring version features a steel front grille and Speakon connectors (front and back).
KEY FEATURES
- Compact arrayable sub that can be stacked or flown, with or without its companion main element the GEO M10
- Integrated rigging hardware with no loose parts
- Front and rear connectivity for cardioid (front to back) implementation
- Comprehensive range of versatile, multifunction accessories for deploying the MSUB15 in a wide variety of applications
- Touring version with steel grille and Speakon connectors
SPECIFICATIONS
| Frequency Response @-6 dB | 40 Hz to 120 Hz |
| Sensitivity 1W@1m | 101 dB SPL Nominal |
| Peak SPL@1m | 136 dB |
| Available Crossover Frequencies | 40-65, 40-75, 40-85, 40-95, 40-120 Hz |
| Nominal Impedance | 8 Ohms |
| Recommended Power | 900 Watts |
FEATURES
| Component | 1 x 15” 8 Ohms long excursion Neodymium driver |
| Height x Width x Depth | 437mm x 531mm x 704mm (17.2” x 20.9” x 27.7”) |
| Weight: Net | 40 kg / 89 lbs |
| Connectors | 4 x NL4, 4 poles connectors (1+/1- MSUB15 / 2+/2- Through) |
| Construction | Baltic Birch Plywood & textured black or white coating |
| Fittings | 4 x Side handles |
| Front Finish | Steel front grill + back mesh |
| Operating temperature range | 0°C – 40 °C |
| Storage temperature range | -20 °C – 60 °C |
| System Operation | |
| Recommended powering solution | NXAMP4x2mk2 Powered TDcontroller: up to 2 x MSUB15 per channel |
| Optional powering solution | NXAMP4x1 Powered TDcontroller (Bridged): up to 2 x MSUB15 per channel |
| NXAMP4x4 Powered TDcontroller: up to 3 x MSUB15 per channel | |
| DTD TDcontroller + DTDAMP4x1.3 Power amplifier: 1 x MSUB15 per channel |
