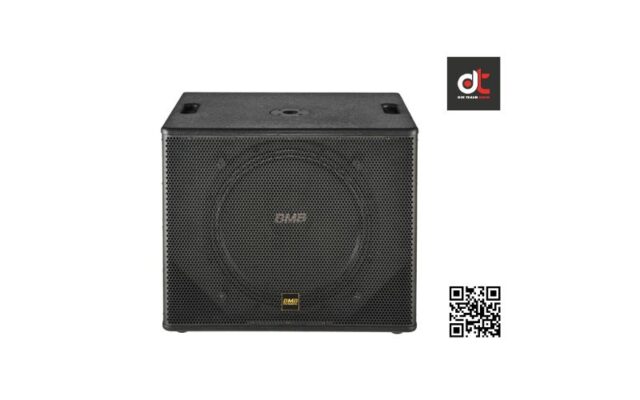

Loa Sub BMB CSW-115
THÔNG SỐ KỸ THUẬT
System Type | 1 Way 1 Speaker Bass Reflex |
LF Driver | 380mm(15 in) Cone, 75mm(3 in) Voice Coil x 1 |
Frequency Range(-10dB) *1 | 45Hz-3.1kHz |
Frequency Response(±3dB) *1 | 50Hz-3.0kHz |
Sound Pressure Level *2 | 93dB |
Impedance | 8 Ω |
Max Sound Pressure Level *3 | 120dB (Peak 126dB) |
Power Capacity | Continuous 500W, Program 1000W, Peak 2000W |
Dimensions (HxWxD) | “465mm x 580mm x 488mm (18-2/7 in x 22 5/6 in x 19-1/5 in)” |
Shipping Dimensions (HxWxD) | “597mm x 706mm x 615mm (23 1/2 in x 27 4/5 in x 24 1/5 in) “ |
Net Weight | 23.98kg(64.25 lbs) |
Shipping Weight | 31.1kg(83.32 lbs) |
Input Connectors | Speaker Connector(4P) x 2 |
Pole Mount Cap | Φ36mm(1 2/5 in), Depth 96mm(3 7/9 in ) |
Enclosure Construction | 15mm(3/5 in) Plywood |
