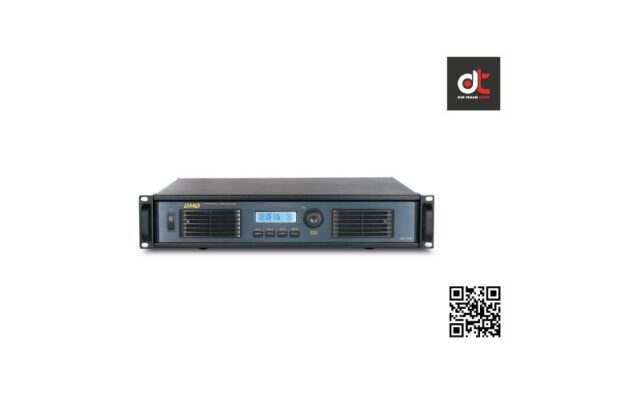

Ampli BMB DAP-5000
THÔNG SỐ KỸ THUẬT
Rating Output Power 1KHz THD = @1% |
800W x 2CH (4Ω) : Stereo Mode 1500W x 1CH(8Ω): Stereo Mode |
Frequency Characteristic (20Hz – 20KHz, 8Ω) | +/- 0.3dB |
THD (8Ω, 1KHz) | 0.04% |
S/N Ratio | >98dB |
Damping factor (100Hz 8 Ω) | >300 |
Voltage Gain | 38(+/-2dB) |
Channel Separation (20Hz – 1000Hz 8 Ω) | >48dB |
Input Impedance | 10KΩ (balance) |
Audio Input Connectors | XRL type x 2CH |
Output Connectors | Neutrik SpeakON NL4MP (1+/1-) |
Screw type (+/-) | |
HPF Switch | 50Hz/Pass |
Ground Switch | GDN/Float |
AC Input | 220V-240V (50/60Hz) |
Power Consumption (1/8 Output Pink noise 8Ω) | 3000W |
Cooling Fans | Automatic Air Volume Control Fans |
Dimensions (mm) | 482 (W) x 89 (H) x 414 (D) |
Weight | 15 Kg Per Piece |
